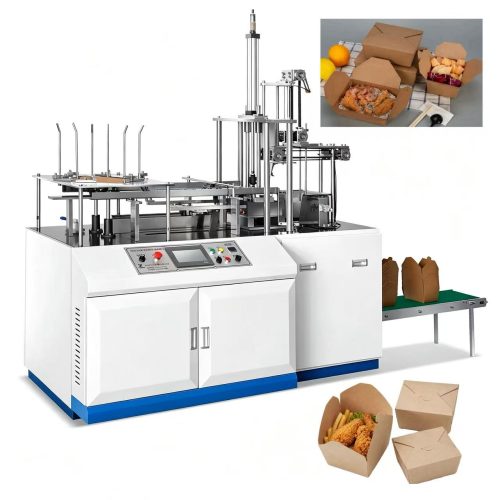

Square Kraft Paper Salad Box Forming Machine
Fully Automatic Disposable Square Kraft Paper Salad Box Making Machine for Oil-proof Takeaway Food Containers
This machine automatically completes paper feeding, creasing, forming, folding and box collection. PLC touchscreen control supports fast mould change. It produces oil-proof kraft salad boxes, runs stably with low failure rate for mass catering packaging production.
Application Range:
Application Range:
1. Square kraft salad box production
2. Fruit, rice bowl and cold food takeaway packaging
3. Catering, supermarket and food packaging factory
3. Catering, supermarket and food packaging factory
4. Custom printed food-grade kraft paper box manufacturing
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | Fully Automatic Square Kraft Paper Salad Box Forming Machine |
| Production Speed | 50–200 pcs/min |
| Product Type | Square kraft salad box (mould customizable) |
| Applicable Paper | 230–350 gsm, PE coated food-grade kraft paper, PLA biodegradable paper |
| Box Size | Customized by different molds |
| Working Process | Auto paper feeding, creasing, forming, folding, finished box collection |
| Control System | PLC + Touch screen, auto counting & fault alarm |
| Total Power | 14 KW |
| Power Supply | 380V, 50Hz, 3-phase |
| Air Pressure | 0.5–0.7 MPa |
| Machine Weight | 3500 KG |
| Overall Dimension (L×W×H) | 3200×1380×1900 mm |
| Warranty | 1 year for core components, lifelong technical support |
| Main Features | Quick mould replacement, stable operation, low failure rate, oil-proof box forming |
