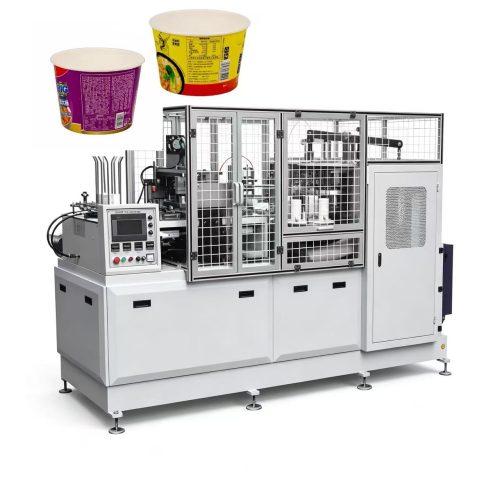

Instant Noodle Paper Bowl Making Machine
Fully Automatic Disposable Instant Noodle Paper Bowl Forming Machine for Food Grade PE Coated Paper Bowl Production
This machine automatically finishes paper feeding, sealing, bottom forming, rim curling and bowl collection. Adopts PLC touch control, easy mould change. It produces waterproof instant noodle bowls, runs stably with low failure rate for mass food packaging production.
Application Range:
Application Range:
1. Instant noodle paper bowl manufacturing
2. Hot soup, porridge, takeaway food paper bowl
3. Food factory & catering packaging supplies
4. Custom printed food-grade paper bowl production
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | Fully Automatic Instant Noodle Paper Bowl Making Machine |
| Production Speed | 40–60 pcs/min |
| Bowl Capacity | 350ml ~ 1200ml (custom sizes available) |
| Applicable Paper | 280–400 gsm, single/double PE coated food grade paper, PLA biodegradable paper |
| Top Diameter | 110–190 mm |
| Bowl Height | 60–130 mm |
| Sealing Method | Hot air sealing, good waterproof performance |
| Control System | PLC + Touch screen, auto counting & fault alarm |
| Total Power | 17 KW |
| Power Supply | 380V, 50Hz, 3-phase |
| Air Pressure | 0.5–0.7 MPa |
| Machine Weight | 4000 KG |
| Overall Dimension (L×W×H) | 3500×1500×2000 mm |
| Warranty | 1 year for core components, lifelong technical support |
| Main Functions | Auto paper feeding, sealing, bottom forming, rim curling, finished bowl collection, quick mould replacement |
