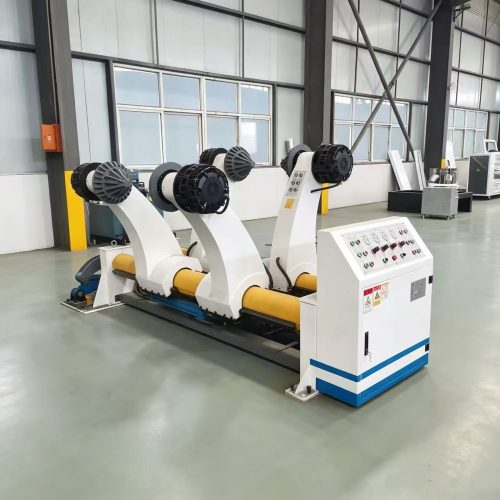

Shaftless Mill Roll Stand
Hydraulic Shaftless Mill Roll Stand, Automatic Paper Feeding for Corrugated Cardboard Production Line
Hydraulic shaftless mill roll stand unwinds paper rolls without shaft loading. It features stable hydraulic clamping, automatic tension control and easy roll replacement. Suitable for various paper roll widths. It works perfectly with single facer units, lowering labor intensity and improving corrugated line efficiency.
Application Range
- Corrugated cardboard production lines
- Matching single facer machines
- Packaging carton manufacturing factories
- Large paper roll unwinding in printing & packaging industry
Main Technical Paramter
| Max. Working Width(mm) | 1400/1600/1800/2000/2400/2600/2800/3200 |
| Min. Working Width(mm) | 700 |
| Max. Paper Mill Dia(mm) | 1400 |
| Max. Working Pneumatic Pressure | 0.6-0.9Mpa |
| Max. Supporting Weight (One side) | 2T |
| Clamping Motor Power | 550W*4pcs |
| Lifting Motor Power | 1.5kw |
