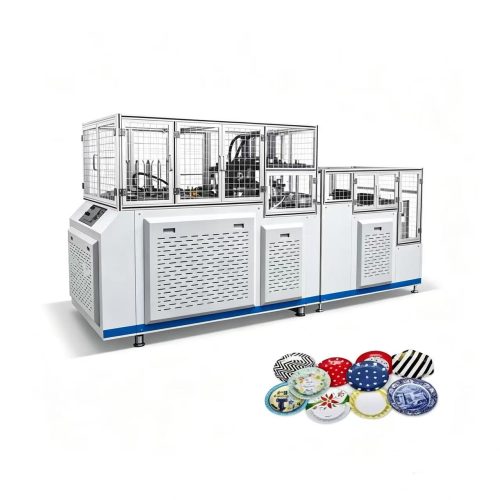

2/3/4 Work Stations Paper Plate Making Machine
Automatic Multi-station Disposable Paper Plate Forming Machine, Optional 2,3,4 Working Stations for Food Grade Paper Plates
This multi-station machine supports 2/3/4 working stations optional. It finishes paper feeding, hot pressing, forming and blanking automatically. PLC control, simple operation, easy mould change. It makes disposable paper plates steadily for small and medium mass production.
Application Range:
Application Range:
1. Disposable paper plate manufacturing
2. Party, picnic and catering food plates
3. Fast food, fruit and snack packaging plates
4. Custom printed food-grade paper plate production
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | 2/3/4 Work Stations Disposable Paper Plate Making Machine |
| Optional Stations | 1/ station/ 2 stations / 3 stations / 4 stations |
| Production Speed | 1 station: 40pcs/min; 2-station: 80pcs/min; 3-station: 120cs/min; 4-station:160pcs/min |
| Applicable Paper | 200–350 gsm food grade paper, PE coated paper, PLA biodegradable paper |
| Plate Size | Customized by molds |
| Working Process | Auto paper feeding, hot pressing, forming, blanking & collection |
| Control System | PLC + Touch screen, auto counting & fault alarm |
| Total Power | 12 KW |
| Power Supply | 380V, 50Hz, 3-phase |
| Air Pressure | 0.5–0.7 MPa |
| Machine Weight | 3100 KG |
| Overall Dimension (L×W×H) | 3000×1300×1800 mm |
| Warranty | 1 year for core components, lifelong technical support |
| Main Features | Flexible station selection, easy mold replacement, low energy consumption, simple maintenance |
