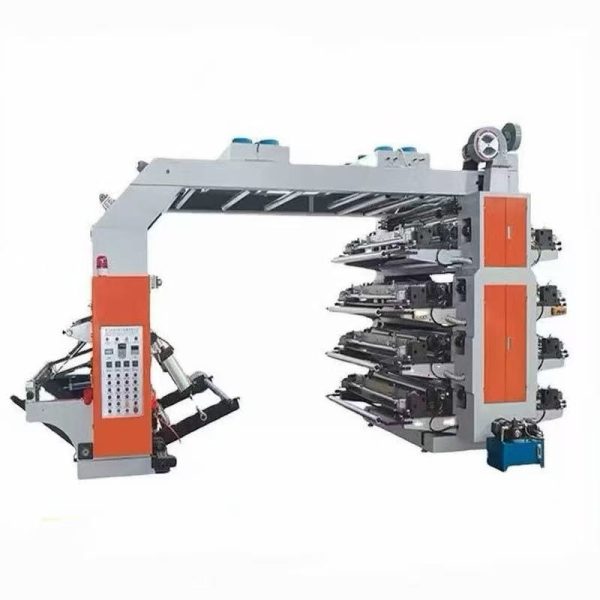

Paper& Film Flexo Printing Machine
High Speed Roll-to-Roll Flexographic Printer for Label & Packaging
This automatic flexo printing machine is designed for roll materials, widely used in food labels, cosmetic stickers, logistics barcode labels and packaging films. Stable running, easy operation, compatible with various paper and film substrates.
Application Range:
1. Flexible packaging pouches & films
2. Corrugated cartons & folding paper boxes
3. Paper cups, paper bags & disposable tableware
4. Medical & pharmaceutical packaging
5. Decorative film & household paper
Suitable Materials:
Kraft paper, SBS board, BOPP, PET, PE, PVC, aluminum foil, synthetic paper…
Main Technical Parameter
| Model | F2/8-600 | F2/8-800 | F2/8-1000 |
| Max Unwinding Width | 600 | 800 | 1000 |
| Max Printing Width | 560 | 760 | 960 |
| Printing Repeat Length | 191-1060mm(Customizable) | ||
| Printing Colors | 1,2,4,6,8 colors(Customizable) | ||
| High Speed Model Mechanical Speed | 0-120m/min | ||
| Low Speed Model Mechanical Speed | 0-50m/min | ||
| Max Material Roll Diameter | ⌀450mm-1000mm(Customizable) | ||
| Total Power | 30kw | 32kw | 34kw |
| Machine Weight | 4500kg | 4800kg | 5000kg |
| Overall Dimension | 380v, 3 phase 50HZ(Customizable, 220v,410v, 440v, etc) | ||
| Note | Web width up to 2m, machine customizable based on customer products. | ||
