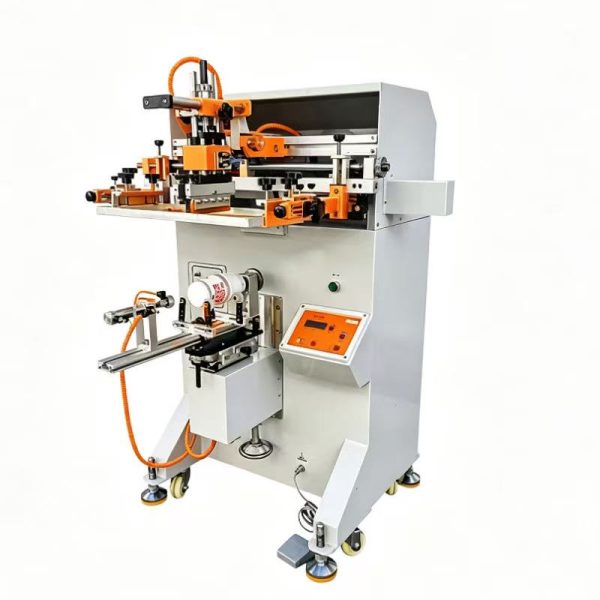

Curved Screen Printing Machine
Suitable for Flat & Curved Surface Printing
This curved screen printer supports printing on both flat and curved surfaces. It is specially designed for irregular and curved workpieces. Stable operation and simple operation help you get clear printing patterns. Widely used for many different products. Ideal for small-batch and mass production to meet your diversified printing demands..
Application Range:
- Cosmetic containers: lip gloss tubes, cream bottles.
- Daily supplies: plastic cups, mugs, water bottles.
- Toys & gifts: plastic toys, craft ornaments.
- Stationery: pens, markers, pencil cases.
- Other irregular & curved workpiece.
Main Technical Paramter
| Machine | Curved Screen Printing Machine |
| Max Printing Area(cm) | 30*15/40*20/50*30/60*40/70*50/80*60(Customizable) |
| Max Printing Plate(cm) | 50*30/60*40/70*50/80*60/110*80/120*90(Customizable) |
| Work Tale Size(cm) | 40*22/50*30/60*40/70*50/80*60/90*70(Customizable) |
| Material Thickness(mm) | 1-200mm(Customizable) |
| Dimension(cm) | 107*85*195(L*W*H) |
| Weight(kg) | 260 |
| Air Resource | 5-6 bar |
| Power | 220/50HZ, 600w |
| Operation type | Automatic/Semi-automatic |
| Printing Surface | Flat Printing/Curved Surface Printing |
