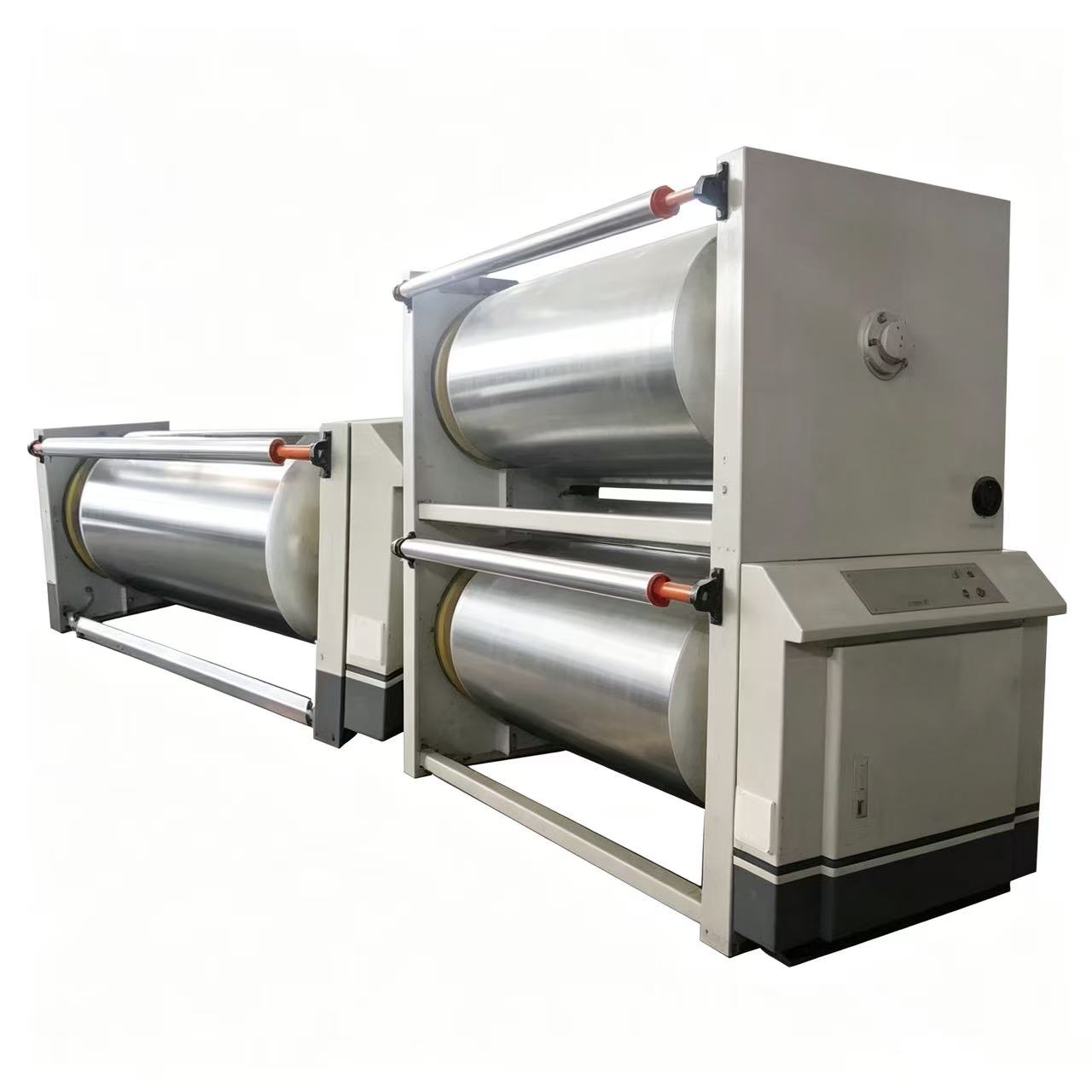

Corrugated Preheater
Multi-layer Corrugated Paper Preheater, Temperature Adjustable for Paper Moisture Control in Corrugated Board Line
Corrugated preheater heats liner paper and medium paper to control moisture evenly. It adopts steam heating design with adjustable temperature. It improves paper stiffness, reduces breakage during corrugating, and boosts board bonding quality. Easy operation, it matches single facer and full corrugated production lines stably.
Application Range
- Corrugated cardboard production lines
- Match single facer and shaftless mill roll stand
- Carton packaging manufacturing plants
- Paper moisture adjustment for packaging paper
Main Technical Paramter
| Item | Specification |
|---|---|
| Working Width | 1400–3200mm |
| Preheating Roller Diameter | Φ320 / Φ360 / Φ400mm |
| Heating Source | Steam heating |
| Steam Pressure | 0.4–0.8 MPa |
| Preheating Roll Quantity | 1~4 layers optional |
| Temperature Range | 50~180℃, adjustable |
| Roller Surface | Hard chrome plated |
| Wrapping Angle | Adjustable |
| Matching Speed | 60–120 m/min |
