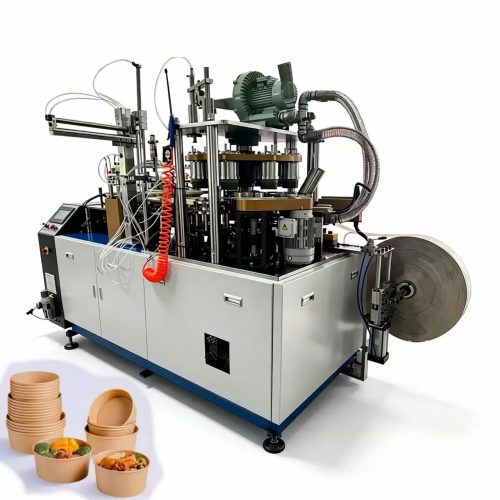

Round Kraft Paper Bowl Making Machine
Fully Automatic Disposable Round Kraft Paper Bowl Forming Machine for Oil-proof Food Containers of Takeaway & Catering
This machine automatically completes paper feeding, sealing, forming, rim curling and bowl collection. PLC touchscreen control, simple mold change. It produces waterproof & oil-proof kraft bowls, stable operation and low failure rate for mass production.
Application Range:
Application Range:
1. Salad, fruit and snack kraft paper bowl production
2. Hot soup, rice bowl, takeaway food packaging
3. Catering, supermarket and food factory supplies
4. Custom printed food-grade kraft bowl manufacturing
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | Fully Automatic Round Kraft Paper Bowl Making Machine |
| Production Speed | 40–60 pcs/min |
| Bowl Capacity | 300ml ~ 1100ml (custom sizes available) |
| Applicable Paper | 250–380 gsm, PE coated food-grade kraft paper, PLA biodegradable paper |
| Top Diameter | 100–180 mm |
| Bowl Height | 55–125 mm |
| Sealing Method | Hot air sealing, waterproof & oil-proof |
| Control System | PLC + Touch screen, auto counting & fault alarm |
| Total Power | 16 KW |
| Power Supply | 380V, 50Hz, 3-phase |
| Air Pressure | 0.5–0.7 MPa |
| Machine Weight | 3800 KG |
| Overall Dimension (L×W×H) | 3400×1450×1950 mm |
| Warranty | 1 year for core components, lifelong technical support |
| Main Functions | Auto paper feeding, sealing, bottom forming, rim curling, finished bowl collection, quick mould replacement |
