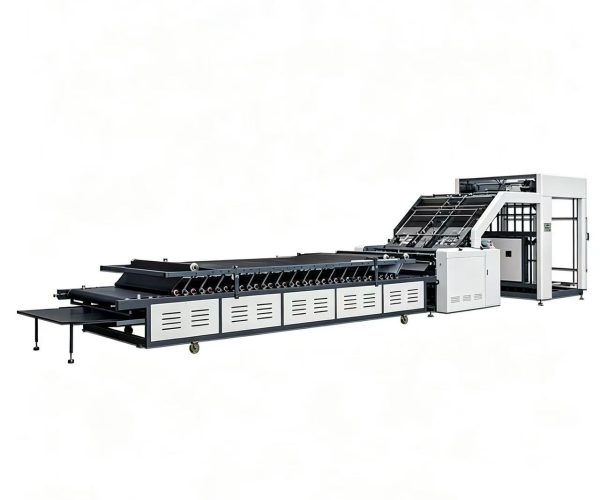

Automatic/Semi Automatic Cardboard Flute Lamination Machine
High Precision Automatic Flute Laminator for Mounting Corrugated Flute Paper to Face Paper for Color Box Board
This flute lamination machine bonds face paper with corrugated flute board automatically. It features even glue coating and stable feeding, delivers smooth surface and firm lamination. Adjustable speed and low glue consumption. Ideal for color cardboard pre-processing with reliable performance.
Application Range:
1. Color box packaging factories
2. Corrugated cardboard lamination
3. Gift box, cosmetic box base board making
4. Mounting art paper, kraft paper onto single face corrugated board
2. Corrugated cardboard lamination
3. Gift box, cosmetic box base board making
4. Mounting art paper, kraft paper onto single face corrugated board
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | Cardboard Flute Lamination Machine (Flute Laminator) |
| Model | FM-1100 / FM-1300 / FM-1450 / FM-1600 (semi-auto) |
| Max. Lamination Size | FM-1100: 1100×800 mm |
| Min. Lamination Size | 300×300 mm |
| Max. Board Thickness | Face paper: 150–400 gsm |
| Lamination Speed | Semi-auto: 30–60 sheets/min |
| Lamination Precision | ±0.5–1 mm |
| Glue System | Automatic glue coating, adjustable glue thickness |
| Glue Consumption | 15–25 g/m² |
| Feeding Mode | Semi-auto: manual feeding |
| Main Motor Power | 3-11kw |
| Machine Weight | 1.2-5T |
| Overall Dimensions (L×W×H) | FM-1450: 3600×1900×1600 mm |
| Control System | Semi-auto: button control |
| Suitable Material | Art paper, kraft paper, grey board, single-face corrugated board (A/B/C/E flute) |
| Power Supply | 380V, 50Hz, 3-phase |
| Air Pressure | 0.5–0.6 MPa (fully auto model) |
