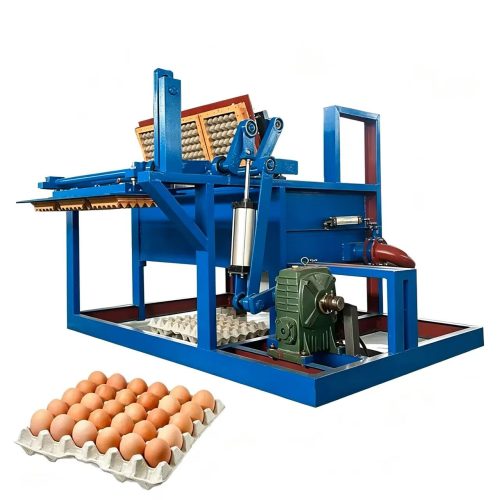

Egg Tray Pulp Molding Machine
Fully Automatic Waste Paper Pulp Molding Machine, for Producing Disposable Egg Trays, Fruit Trays and Custom Pulp Packaging Products
This pulp molding machine uses waste paper as raw material. It completes pulp forming, dehydration, hot pressing and product output automatically. With PLC control and quick mold change, it makes eco-friendly pulp products steadily, suitable for small and large-scale production.
Application Range:
1. Paper egg tray, egg carton manufacturing
Application Range:
1. Paper egg tray, egg carton manufacturing
2. Fruit tray, apple tray, bottle holder production
3. Electronic & cosmetic protective pulp packaging
4. Biodegradable custom molded pulp packaging
Main Technical Paramter
| Item | Standard Model | High Output Model |
|---|---|---|
| Machine Name | Semi-automatic Egg Tray Pulp Molding Machine | Fully Automatic Egg Tray Pulp Molding Machine |
| Production Capacity | 800–1200 pcs/h | 2000–3000 pcs/h |
| Product Type | Egg trays, small fruit trays, simple pulp packaging | Egg trays, egg boxes, fruit trays, custom protective pulp packaging |
| Raw Material | Waste paper, cardboard | Waste paper, cardboard, waste newspaper |
| Working Process | Pulp preparation, forming, vacuum dehydration, hot pressing, stacking | Pulp preparation, forming, vacuum dehydration, hot pressing, automatic stacking |
| Control System | PLC + Touch screen, fault alarm | PLC + Touch screen, auto counting, fault alarm |
| Total Power | 22 KW | 45 KW |
| Power Supply | 380V, 50Hz, 3-phase | 380V, 50Hz, 3-phase |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Machine Weight | 5500 KG | 9500 KG |
| Overall Dimension (L×W×H) | 6200×2400×2600 mm | 8500×3200×3000 mm |
| Warranty | 1 year for core components, lifelong technical support | |
| Main Features | Low investment, easy operation, ideal for small factory High productivity, automatic stacking, stable for mass production | |
