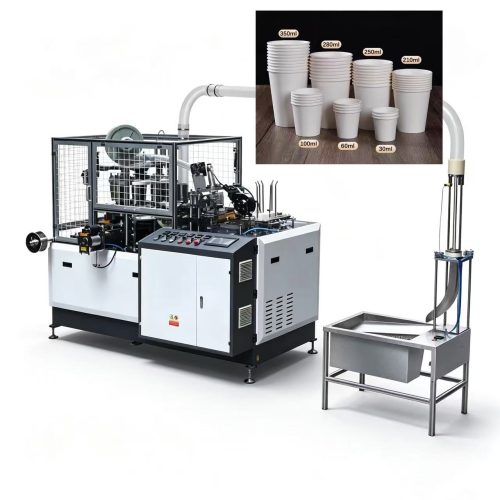

Automatic Paper Cup Forming Machine
Fully Automatic Disposable Paper Cup Making Machine for PE Coated Paper Coffee, Tea and Cold Drink Cups
This machine automatically completes paper feeding, sealing, bottom forming, rim curling and cup collection. Stable running with PLC control. It supports multiple cup sizes, produces leak-proof disposable cups with low failure rate. Ideal for food packaging factory mass production.
Application Range:
1.Coffee & milk tea disposable cup manufacturing
2. Cold drink, soup and ice cream paper cup production
3. Food packaging and catering supply factory
4. Custom printed disposable paper cup processing
Main Technical Paramter
Item | Standard Speed Model | High Speed Model |
|---|---|---|
Machine Name | Fully Automatic Paper Cup Forming Machine | |
Production Speed | 70–90 pcs/min | 120–140 pcs/min |
Cup Capacity Range | 3–16 oz (30ml–480ml) | 4–16 oz (120ml–480ml) |
Cup Dimension | Top Dia: 45–90 mm/Bottom Dia: 35–75mm/Height: 35–120 mm | Top Dia: 60–95 mm/Bottom Dia: 40–78 mm/Height: 35–135 mm |
Applicable Paper | 170–380 gsm, single/double PE coated paper, PLA biodegradable paper | |
Sealing Method | Ultrasonic hot air sealing, leak-proof | |
Control System | PLC + Touch screen, automatic counting & fault alarm | |
Total Power | 11 KW | 21 KW |
Power Supply | 380V / 50Hz / 3-phase | |
Air Pressure | 0.5–0.7 MPa | 0.6–0.8 MPa |
Air Consumption | 0.4 m³/min | 0.6–0.8 m³/min |
Machine Weight | 3200 KG | 3600 KG |
Overall Dimension | 2800×1350×1900 mm | 3100×1250×1900 mm |
Warranty | 1 year for core components, lifelong technical support | |
Feature | Auto feeding, sealing, bottom forming, curling & collecting; easy mould replacement, low failure rate | |
