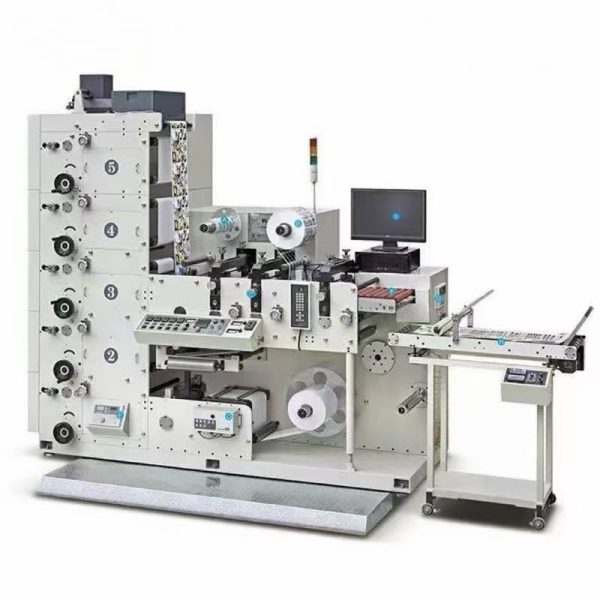

Label Flexo Printing Machine
High Speed Roll-to-Roll Flexographic Printer for Label & Packaging
This roll-to-roll narrow web flexo printer delivers precise color registration for label production. It supports 2–8 color printing on various roll substrates, including BOPP, PET, paper and aluminum foil film. Stable running and simple operation. Ideal for self-adhesive labels, barcode stickers and flexible packaging.
Application Range:
1. Self-adhesive labels & barcode stickers
2. Greaseproof paper, kraft paper & paper bags
3. BOPP, PET, PVC and aluminum foil film
4. Non-woven fabric & disposable tableware packaging
5. Medical packaging & household paper
Main Technical Paramter
| Model | LFP-330 | LFP-470 | LFP-650 |
| Max Unwinding Wdith(mm) | 330 | 470 | 650 |
| Max Printing Width(mm) | 320 | 450 | 640 |
| Printing Repeat Length(mm) | 180-380 (Customizable) | ||
| Printing Colors | 1,2,4,6,8 colors | ||
| High Speed Model Printing Speed | 0-100m/min | ||
| Low Speed Model Printing Speed | 0-50m/min | ||
| Max Material Roll Diameter | Dia:650mm (Customizable) | ||
| Cutting Station | Yes (Customizable) | ||
| Lamination Station | Yes (Customizable) | ||
| Total Power | 2.2KW | 2.3KW | 3KW |
| Machine Weight | 2500kg | 3000kg | 3200kg |
| Voltage | 380V, 3 Phase, 50HZ (Customizable) | ||
| Note | Cutting station and lamination station, customizable based on customer products | ||
