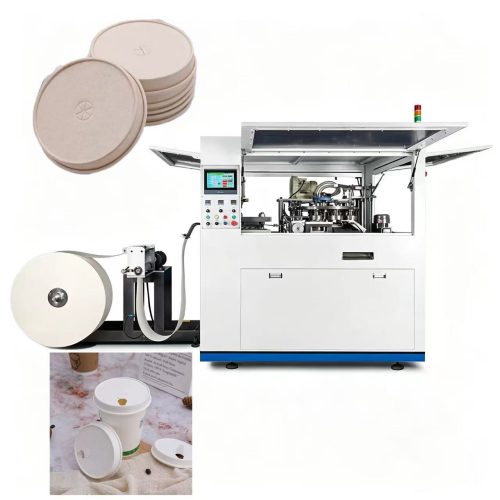

Paper Cup Lid Making Machine
Fully Automatic Disposable Paper Cup Lid Forming Machine, Eco-friendly Biodegradable Lids for Coffee Cups, Soup Bowls & Food Containers
This machine finishes paper feeding, hot pressing, forming, cutting and stacking automatically. Equipped with PLC & touchscreen control, it supports quick mold change. It manufactures leak-proof biodegradable paper lids, runs steadily with high precision for green food packaging mass production.
Application Range:
Application Range:
1. Disposable paper lids for coffee cups, hot drink cups
2. Soup bowl, ice cream cup and food container paper lid production
3. Café, fast food restaurant and beverage packaging factory
4. Custom eco-friendly biodegradable paper lid manufacturing
Main Technical Paramter
| Item | CL120 | CL160 | CL220 |
|---|---|---|---|
| Machine Name | Fully Automatic Paper Cup Lid Making Machine | ||
| Production Speed | 35–50 pcs/min | 40–60 pcs/min | 45–70 pcs/min |
| Product Type | Small paper lids for 4oz/6oz coffee & tea paper cups | Standard lids for 8oz/12oz drinking paper cups | Large lids for soup bowls, salad & ice cream containers |
| Applicable Material | 250–350 gsm food-grade paper board, biodegradable coated paper | 250–350 gsm food-grade paper board, biodegradable coated paper | 280–400 gsm food-grade paper board, biodegradable coated paper |
| Lid Diameter | 60–120 mm | 70–160 mm | 90–220 mm |
| Working Process | Auto paper feeding, hot pressing, forming, cutting, stacking | Auto paper feeding, hot pressing, forming, cutting, stacking | Auto paper feeding, hot pressing, forming, cutting, stacking |
| Control System | PLC + Touch screen, auto counting, fault alarm | PLC + Touch screen, auto counting, fault alarm | PLC + Touch screen, auto counting, fault alarm |
| Total Power | 12 KW | 15 KW | 18 KW |
| Power Supply | 380V, 50Hz, 3-phase | 380V, 50Hz, 3-phase | 380V, 50Hz, 3-phase |
| Air Pressure | 0.5–0.7 MPa | 0.5–0.7 MPa | 0.5–0.75 MPa |
| Machine Weight | 3200 KG | 3600 KG | 4200 KG |
| Overall Dimension (L×W×H) | 3300×1450×1850 mm | 3600×1500×1900 mm | 4000×1600×1950 mm |
| Warranty | 1 year for core components, lifelong technical support | ||
| Main Features | Compact structure, for small drink cup lids, quick mold change Popular standard model for coffee cup lids, stable operation Wide size range, for bowl & large container lids, high precision | ||
