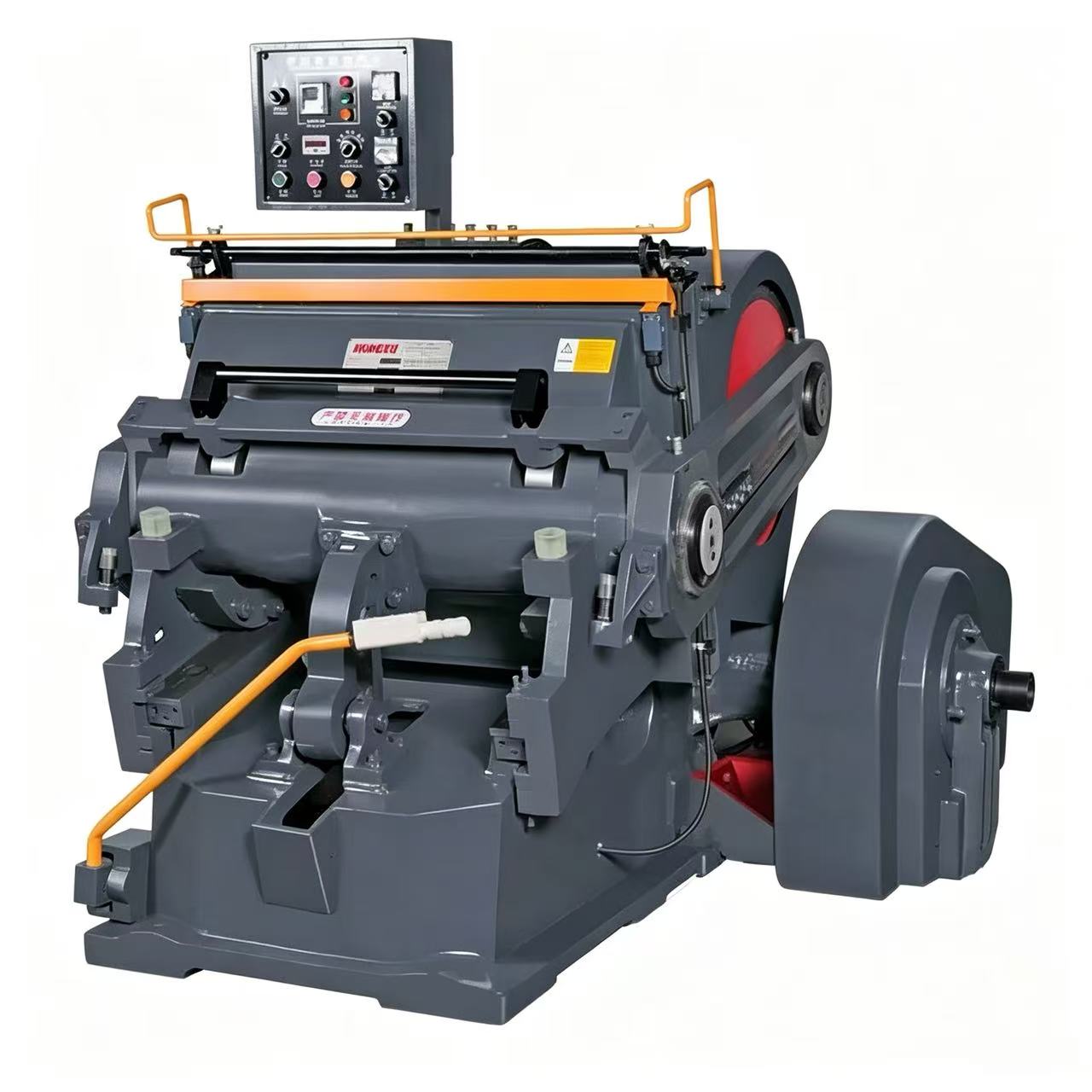

Flat Bed Die Cutting & Creasing Machine
Semi-automatic Platen Die Cutter for Corrugated Board, Paper Box, Cardboard Creasing and Die-cutting
Semi-automatic platen die cutting & creasing machine is widely used for paperboard and corrugated cardboard processing. It completes die-cutting and creasing in one operation. Heavy-duty body ensures stable pressure and precise cutting. Simple operation, low maintenance. Ideal for small & medium batch carton, label and paper box blank production.
Application Range:
1. Corrugated carton & color box factory
2. Paper box, greeting card, sticker label processing
3. Packaging industry, paper printing plant
4. Die-cutting & creasing for cardboard, grey board, corrugated paper
2. Paper box, greeting card, sticker label processing
3. Packaging industry, paper printing plant
4. Die-cutting & creasing for cardboard, grey board, corrugated paper
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | Semi-automatic Flat Bed Die Cutting & Creasing Machine (Platen Die Cutter) |
| Model | ML930 / ML1100 / ML1200 / ML1400 |
| Max Working Size | ML930: 930×670 mm |
| Min Working Size | 300×200 mm |
| Max Cutting Thickness | 8 mm (corrugated cardboard) |
| Main Motor | 5.5-11kw |
| Machine Weight | 6-12T |
| Operation Speed | 20–40 times/min |
| Control Mode | Manual feeding, electric control |
| Suitable Material | Corrugated board, grey board, art paper, cardboard |
| Power Supply | 380V, 50Hz, 3-phase |
