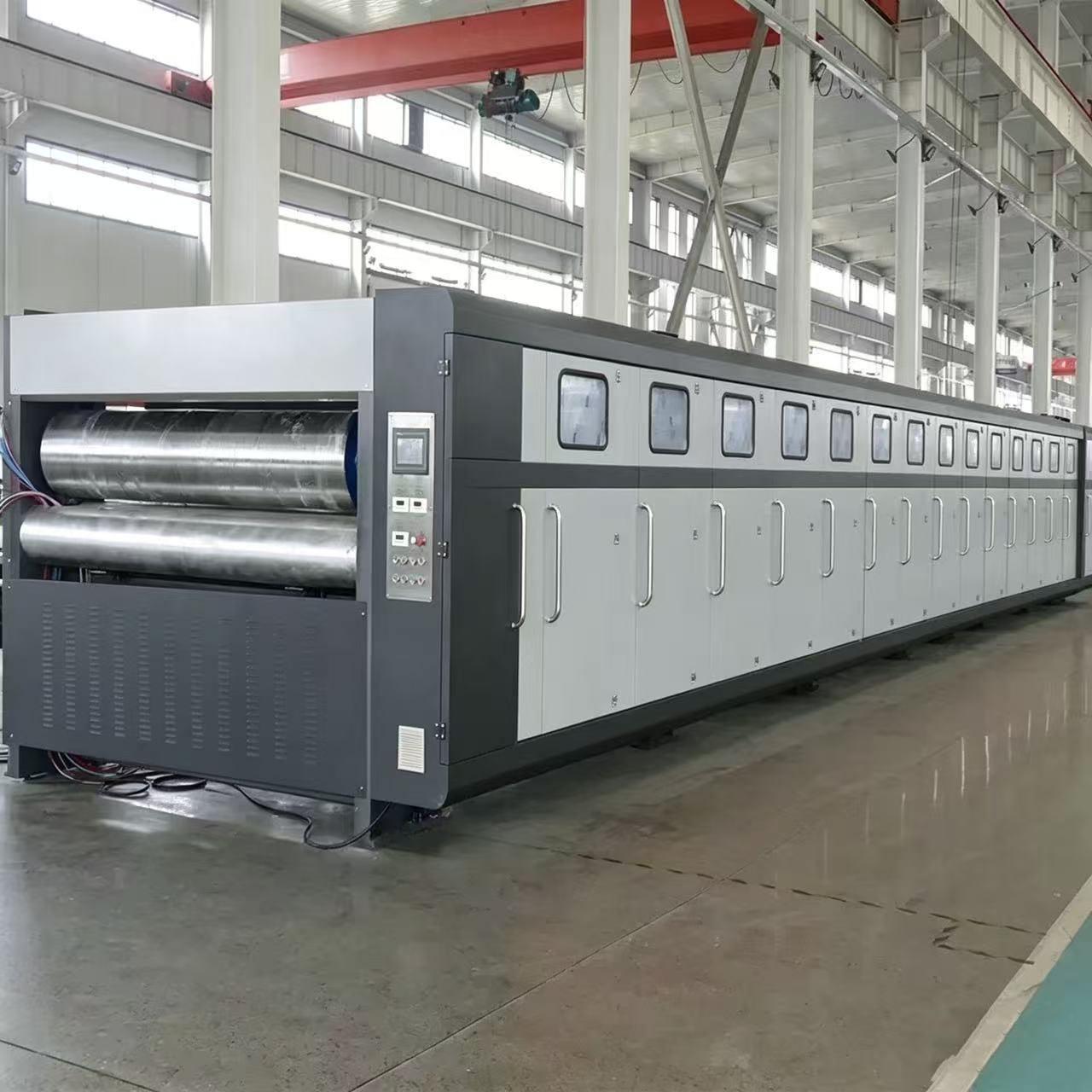

Corrugated Double Facer
High Speed Double Facer for 3/5/7 Ply Corrugated Cardboard Production, Stable Running for Corrugator Line to Make Flute Laminated Paperboard
Corrugated double facer is core equipment of corrugated board production line. It bonds single-faced corrugated paper with liner paper under heat and pressure to form 3,5,7-ply corrugated cardboard. Featuring stable temperature control and even pressure, it delivers firm adhesion, neat board surface and low failure rate. Suitable for continuous mass production.
Application Range:
- Carton packaging industry
- Corrugated cardboard manufacturing plant
- Food, logistics, furniture and electronic product packaging
- Making shipping boxes, color box base boards and heavy-duty packing cartons
Main Technical Paramter
| Item | Specification |
|---|---|
| Machine Name | Corrugated Double Facer |
| Max. Effective Working Width | 1400–3200 mm (custom available) |
| Design Speed | 100–180 m/min |
| Suitable Board | 3 / 5 / 7 ply corrugated cardboard |
| Heating Plate | 600mm width, polished & chrome plated |
| Heating Temperature | 160–200 ℃ |
| Steam Pressure | 0.8–1.3 MPa |
| Air Pressure | 0.5–0.6 MPa |
| Operation Direction | Left / Right (customized per workshop layout) |
| Power Supply | 380V, 50Hz, 3-phase |
| Control System | PLC + VFD speed regulation |
| Cooling Section Length | 4–5 m |
