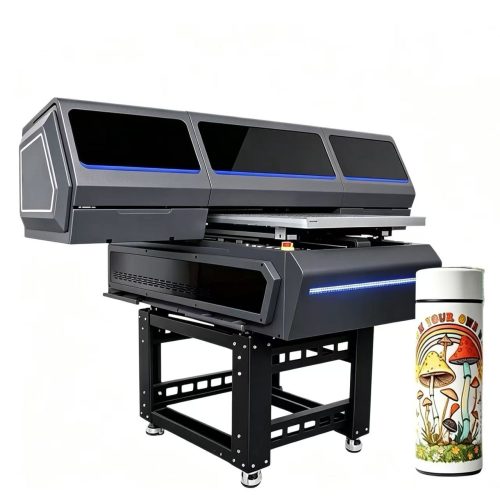

CASE UV PRINTER – Small Format UV Flatbed Printer
Case UV Printer for Phone Cases & Small Promotional Goods
Application Range：
Phone cases, earbud cases, tablet shells
Acrylic, PVC, plastic, metal nameplates
Wood crafts, gifts, promotional souvenirs
Notebook covers, packaging tags, small signages
Custom logo printing, personalized small merchandise
Main Technical Paramter
| Parameter | Size 1 | Size 2 | Size 3 | Size 4 |
|---|---|---|---|---|
| Max Printing Size | 300×500 mm | 400×600 mm | 450×600 mm | 600×900 mm |
| Printhead | 2 Pcs Original Epson XP600 | 2 Pcs Original Epson XP600 | 2 Pcs Original Epson XP600 | 2 / 3 Pcs Original Epson XP600 |
| Max Printing Resolution | Up to 2400×1200 DPI | Up to 2400×1200 DPI | Up to 2400×1200 DPI | Up to 2400×1200 DPI |
| Ink Color | CMYK + White + Varnish UV Ink | CMYK + White + Varnish UV Ink | CMYK + White + Varnish UV Ink | CMYK + White + Varnish UV Ink |
| Ink Type | LED UV Curable Ink, scratch-resistant & waterproof | LED UV Curable Ink, scratch-resistant & waterproof | LED UV Curable Ink, scratch-resistant & waterproof | LED UV Curable Ink, scratch-resistant & waterproof |
| Curing System | Built-in LED UV lamp, instant curing after printing | Built-in LED UV lamp, instant curing after printing | Built-in LED UV lamp, instant curing after printing | Built-in LED UV lamp, instant curing after printing |
| Max Print Height | 100–150mm, supports high & uneven objects | 100–150mm, supports high & uneven objects | 100–150mm, supports high & uneven objects | 100–150mm, supports high & uneven objects |
| Printing Speed | Medium: 6–12 pcs/h | Medium:5–10 pcs/h | Medium:4–9 pcs/h | Medium:3–7 pcs/h |
| RIP Software | Photoprint / Maintop RIP Software | Photoprint / Maintop RIP Software | Photoprint / Maintop RIP Software | Photoprint / Maintop RIP Software |
| Operating System | Windows 10 / Windows 11 (64-bit) | Windows 10 / Windows 11 (64-bit) | Windows 10 / Windows 11 (64-bit) | Windows 10 / Windows 11 (64-bit) |
| Power Supply | AC 110V/220V, 50/60Hz | AC 110V/220V, 50/60Hz | AC 110V/220V, 50/60Hz | AC 110V/220V, 50/60Hz |
| Certification | CE, RoHS Certified | CE, RoHS Certified | CE, RoHS Certified | CE, RoHS Certified |
| Compatible Materials | Plastic, acrylic, metal, glass, wood, PU, leather, cardboard | Plastic, acrylic, metal, glass, wood, PU, leather, cardboard | Plastic, acrylic, metal, glass, wood, PU, leather, cardboard | Plastic, acrylic, metal, glass, wood, PU, leather, cardboard |
| Features | 3D embossed texture, white ink & varnish printing, rotary fixture optional for cylinder items | 3D embossed texture, white ink & varnish printing, rotary fixture optional for cylinder items | 3D embossed texture, white ink & varnish printing, rotary fixture optional for cylinder items | 3D embossed texture, white ink & varnish printing, rotary fixture optional for cylinder items |
